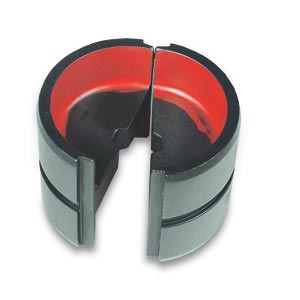

Thomas & Betts Shell-Type Crimp U-Die Sets


Interchangeable Crimping U-Dies from T&B crimp terminals, lugs, C-Taps to 900 MCM and Aluminum H-Taps.

Thomas & Betts Color-Keyed Shell-type dies are designed for use in the TBM14M Manual hydraulic crimper (#39205) and the TBM15 hydraulic crimpers (#39242).

NOTE: The TBM15 requires the #39240 U-die Adapter in order to use the U-Type shell dies!

Dies are made of hardened steel and are also color-coded for easy identification. Each die set produces an embossed Code# on the crimped lug or terminal to ensure a proper size crimp die was used.

We carry T&B's full line of Shell-dies for terminals, lugs, C-Taps and H-Taps. See the tables below for details.

  • Each die set is Color-Keyed for quick, proper die selection.
  • Embossed Code # ensures a reliable and verifiable crimp every time!
Thomas & Betts Color-Keyed Crimp Dies for "C" Taps & Lugs
These T&B Die Sets are for use with Color-Keyed Terminals, Lugs and Copper C-Taps.

Weight: 0.5

  • Part #
  • Code #
  • Wire Size (AWG)
  • Die Color
  • Fits
  • 39206
  • 21
  • 8 AWG
  • Red
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39207
  • 24
  • 6 AWG
  • Blue
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39208
  • 29
  • 4 AWG
  • Gray
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39209
  • 33
  • 2 AWG
  • Brown
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39210
  • 37
  • 1 AWG
  • Green
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39211
  • 42H
  • 1/0 AWG
  • Pink
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39212
  • 45
  • 2/0 AWG
  • Black/Gold
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39213
  • 50
  • 3/0 AWG
  • Orange/Brown
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39214
  • 54H
  • 4/0 AWG
  • Purple/Green
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39215
  • 62
  • 250 MCM
  • Yellow
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39216
  • 66
  • 300 MCM
  • White
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39217
  • 71H
  • 350 MCM
  • Red
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39218
  • 76H
  • 400 MCM
  • Blue
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39219
  • 80
  • 350 MCM
  • Black
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39220
  • 87H
  • 500 MCM
  • Brown
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39221
  • 94H
  • 600 MCM
  • Green
  • TBM15 ONLY
  • $490.00 qty:
  • 39222
  • 94H
  • 600 MCM
  • Green
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39223
  • 99H
  • 535 MCM
  • Pink
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39224
  • 106H
  • 750 MCM
  • Black
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
  • 39225
  • 107H
  • 800 MCM
  • Orange
  • TBM15 ONLY
  • $490.00 qty:
  • 39226
  • 112H
  • Bus Bar Taps
  • Purple
  • TBM15 ONLY
  • $490.00 qty:
  • 39227
  • 115H
  • 900 MCM
  • Yellow
  • TBM14M & TBM15 w/adapter
  • $232.00 qty:
Thomas & Betts Color-Keyed Die Sets for Aluminum "H" Taps
These T&B Die Sets are for use with Color-Keyed Aluminum H-Taps.

Weight: 0.5

  • Part #
  • Code #
  • Main
  • Branch 1/2/3
  • Die Color
  • Fits
  • 39230
  • 37R
  • 8-14 AWG
  • 8-14 / - / -
  • Green
  • TBM14M & TBM15 w/adapter
  • $540.00 qty:
  • 39231
  • 71R
  • 2-8 AWG
  • 2-8 / 8-14 / 8-14
  • Brown
  • TBM14M & TBM15 w/adapter
  • $540.00 qty:
  • 39232
  • 80R
  • 250MCM-2AWG
  • 250-14 / 8-14 / -
  • Purple
  • TBM14M & TBM15 w/adapter
  • $540.00 qty:
