CP Error “E” simulates the behavior of the station when there is an established short circuit between CP and PE. PE Error (Earth Fault) simulates interruption of the PE conductor. When the CCID TRIP Test Button is pressed, a connection between L1 and PE is established and CCID from the station should abort charging process. A phase indicator LED will illuminate when phase voltage on L1 is present at the charging connector.
The Measuring Terminal Outputs L1, L2(N), PE and PP are directly connected to the L1, L2(N), PE and PP conductors of the tested charging station. You can use your digital multimeter for quickly viewing voltage readings on these lines. SAE J1772 complies with North American standards. Includes (1) IEC62196-2 Type 1 female to male adaptor/converter and pouch case.
- Test charging stations for both basic & advanced diagnostic requirements
- PE Pre-Test: Allows testing the PE conductor for possible presence of dangerous voltage against earth
- Control Pilot (CP) State (Vehicle Simulation): With the CP State rotary switch selector various vehicle states can be simulated
- CP Signal State Output: For use with an oscilloscope to check the waveform and amplitude of the CP signals
- CP Error “E” simulation: Simulate the behavior of the station when there is an established short circuit between CP and PE
- PE Error (Earth Fault) simulation: Simulates interruption of the PE conductor
- CCID TRIP Test Button: When pressed a connection between L1 and PE is established and CCID from the station should abort charging process
- Phase indicator LED: When phase voltage on L1 is present at the charging connector, the LED indicator will illuminate
- Measuring Terminal Outputs L1, L2(N), PE and PP: Directly connected to L1, L2(N), PE and PP conductors of the tested charging station. It is allowed to use these for measuring purposes only and can be used with any Digital Multimeter for viewing voltage readings
- SAE J1772 -Complies with North American standards

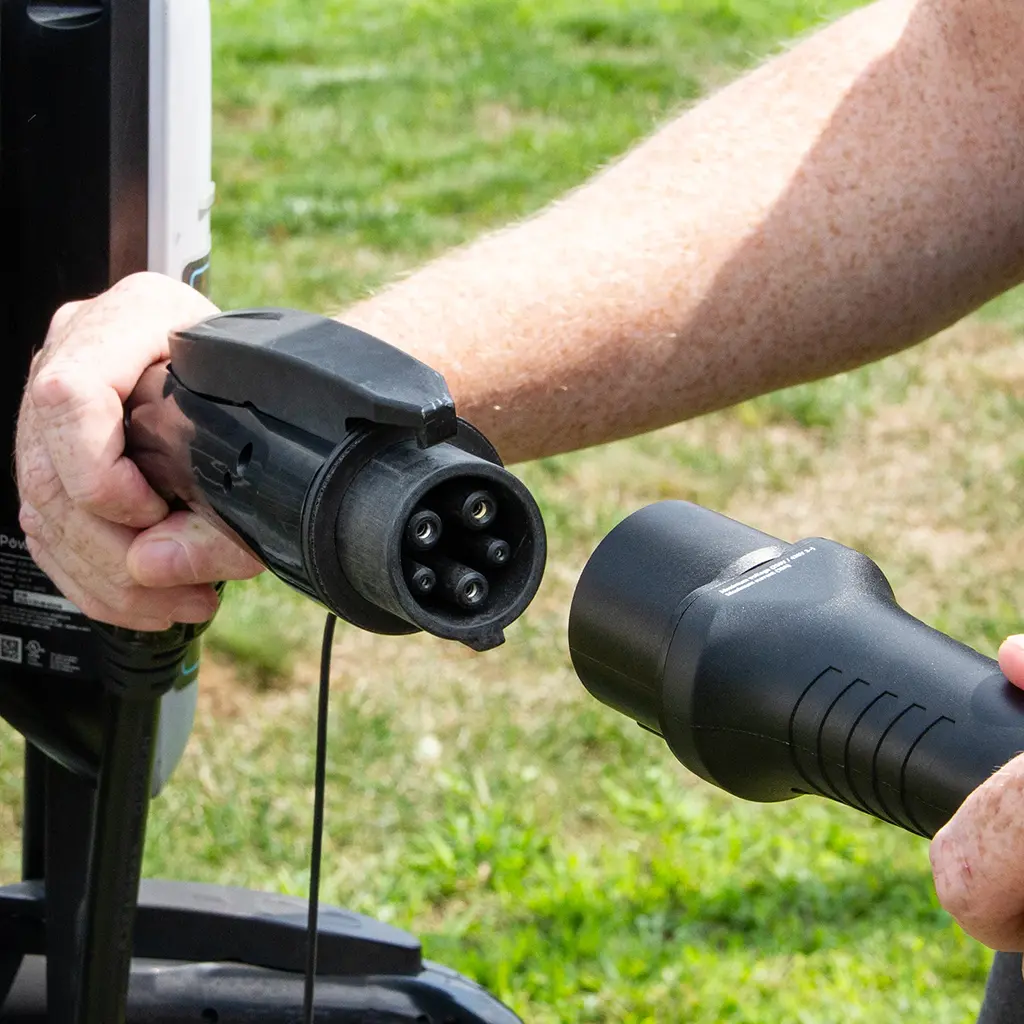

- Includes: (1) IEC62196-2 Type 1 female to male adaptor/converter and pouch case
